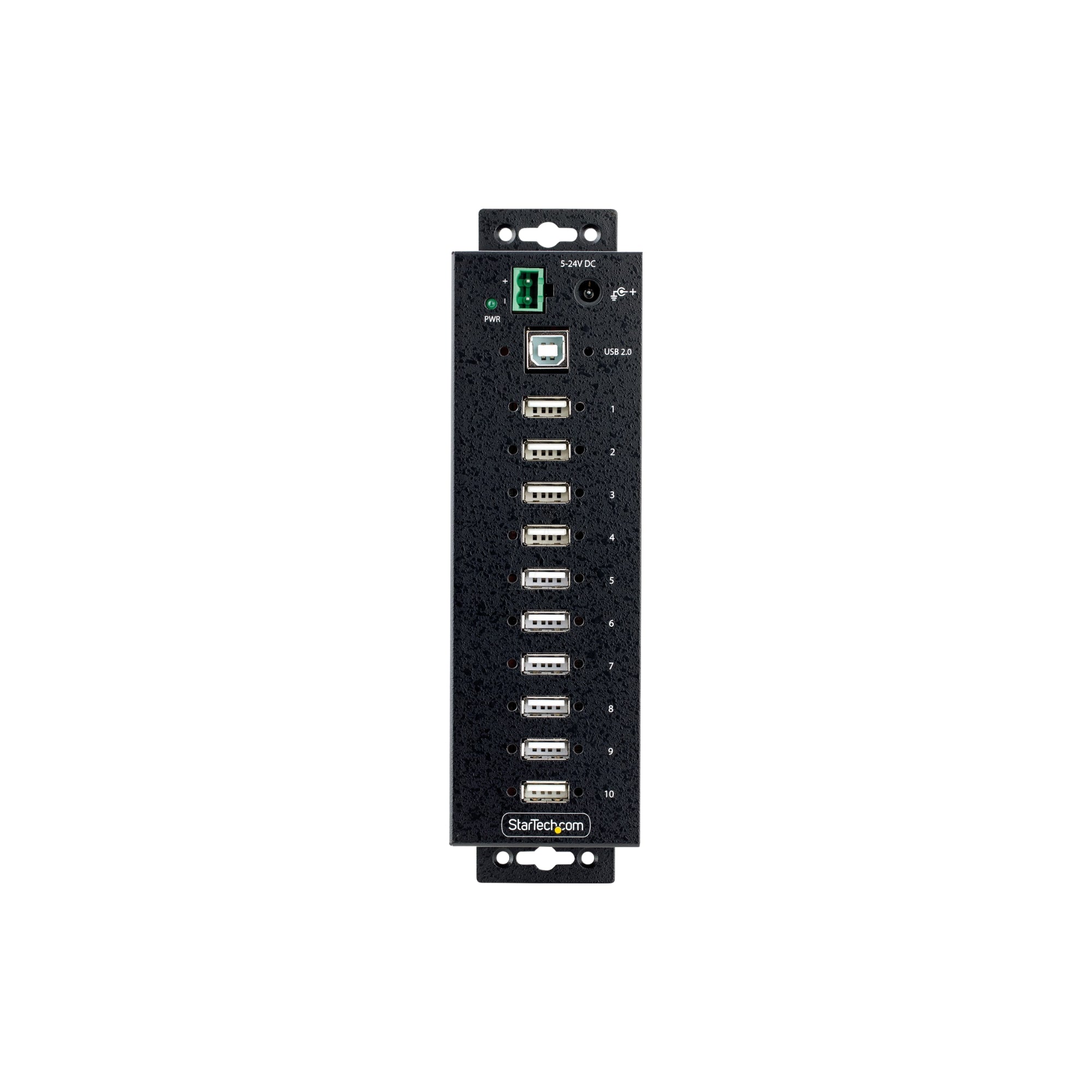

Industrial 10-port USB 2.0 hub, USB-A
Metal construction | 1.8 m USB host cable included
- 10-PORT INDUSTRIAL USB 2.0 HUB: Cold-rolled steel construction ensures robustness in harsh environments (0 to 60°C at 95% relative humidity); 10 locking USB-A ports; USB 2.0 compliant; 480 Mbps shared bandwidth; OS independent
- ESD PROTECTION: ESD Level 4 USB hub has an electrostatic protection function of 15kV (air) and 8kV (contact) for the ports to prevent failure or damage; the hub provides up to 5V 0.5A per port and works with most USB devices
- FLEXIBLE MOUNTING: The 10-port USB hub has integrated mounting brackets for wall/table installation; DIN rail mounting kit included; All USB ports on the hub have a screw lock to prevent accidental disconnection
- POWER SUPPLY OPTIONS: USB splitter has two power supply options via the DC plug or the terminal block (power adapter not included); external power supply of 5-24V DC required; 2-pin terminal block power supply ITB20D3250 (sold separately)
- CONNECTIVITY TOOLS: Enhance the performance and security of this TAA-compliant, mountable USB multi-plug with the included USB Events Utility software (available for download)
This TAA-compliant 10-port industrial USB 2.0 hub offers scalability and protection in harsh industrial environments by providing a high number of USB ports with Level 4 ESD protection. The rugged metal housing is ideal for industrial applications. For the powered connection, the hub features power redundancy via the DC barrel connector and terminal block connection. Mount the hub on a DIN rail with the included hardware or on a table or wall with the built-in mounting brackets to complete the installation.
Robust constructionThis industrial USB 2.0 hub offers reliable performance under the most demanding conditions with operating temperatures from 0 to 60°C at 95% relative humidity.
ESD Level 4 protection (15 kV in air and 8 kV in contact) ensures your devices are protected from electrostatic damage. An external power supply of 5 to 24 V DC is required. StarTech.com offers the option of powering the USB splitter via the 2-wire terminal block connection (part ITB20D3250).
Connect 10 USB Type-A USB devicesThe USB hub features screw-locking USB connectors for both upstream and downstream connections to prevent accidental disconnection. Driver-free installation and OS independence speed up deployment, ensure minimal downtime, and compatibility with a wide range of USB devices.
The robust USB multi-plug supports the total bandwidth of USB 2.0 with 480 Mbps and is backward compatible with USB 1.1 and 1.0 devices.
compatibilityInstallation options include DIN rail mounting with two horizontal or one vertical mounting bracket, as well as wall or desktop mounting using the integrated mounting brackets. To complete the installation, the hub includes a 1.8 m USB cable with a screw lock to prevent accidental disconnection during operation.
The industrial USB hub is USB 2.0 compliant and supports DC and terminal block power inputs from 5 to 24V DC to provide compatibility and flexibility in various scenarios such as product and repair labs, conference rooms or office workstations.
